Installing a 3 Inch Body lift

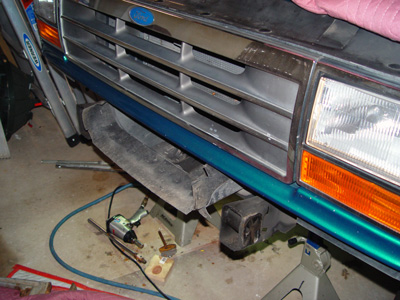

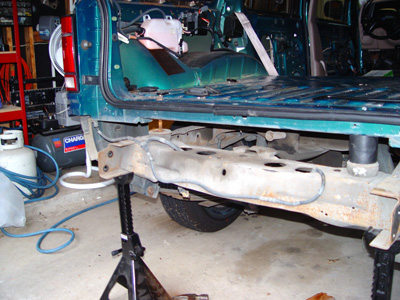

1st step is to remove the front and rear bumpers

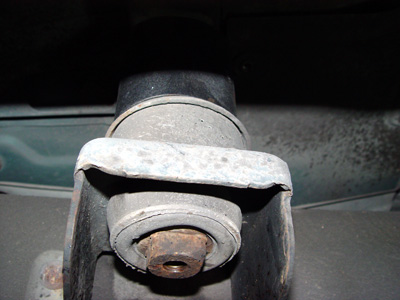

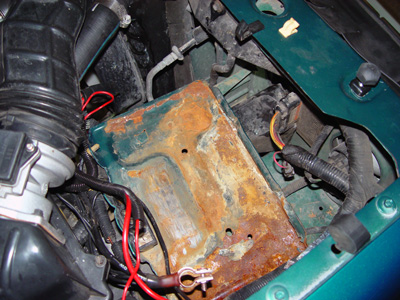

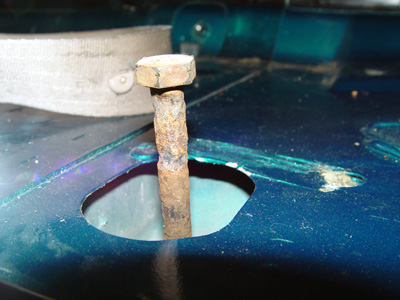

Next is to remove the battery (will remove the rust and repaint) Here is the stock body bolts

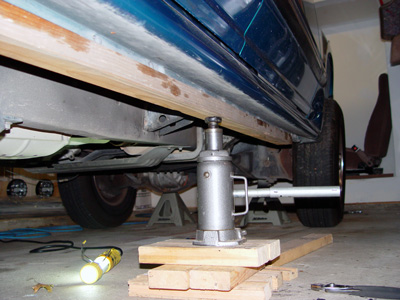

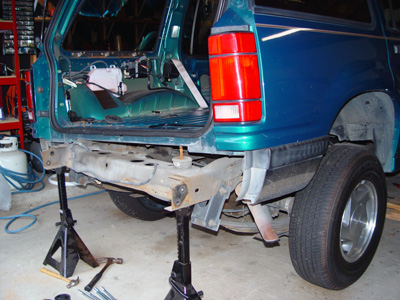

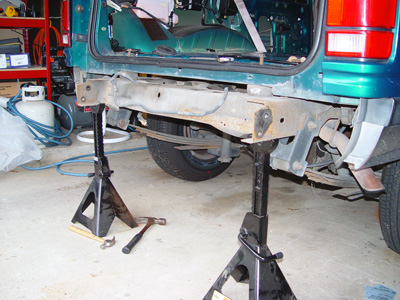

Next using a 5 ton jack we rise one side at a time

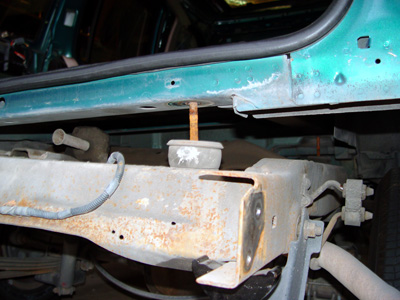

We raise the right side about 3.25" to put in the 3" spacer blocks

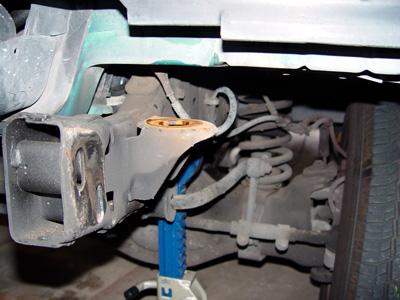

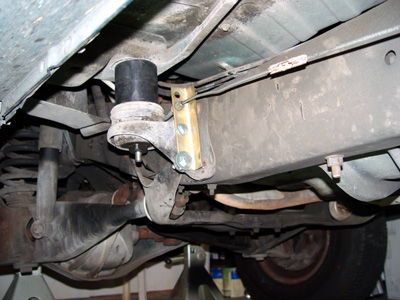

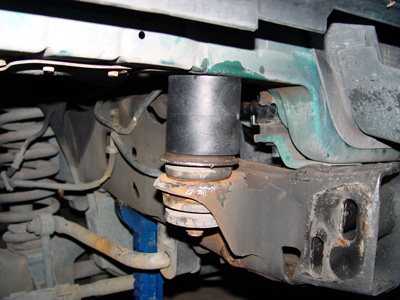

3" spacer black on top on the OEM Body bushings also the Bracket to relocate the Parking Brake

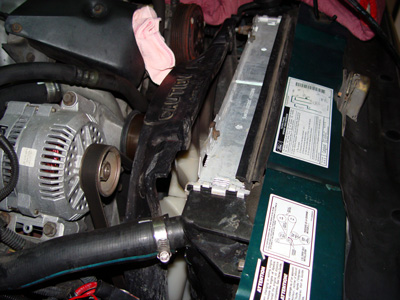

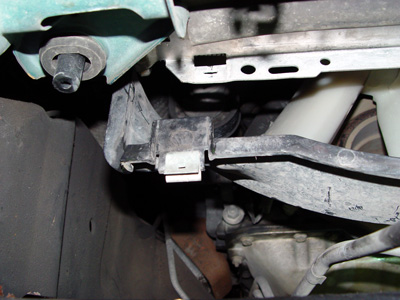

installing the front body mount and spacer As we raised the body 3" higher, we had to drop the fan shroud 3" lower

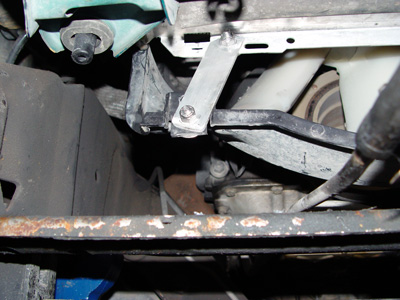

Installed the lower radiator drop down brackets

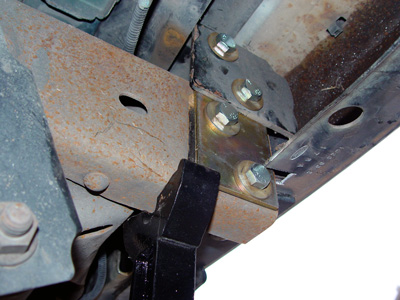

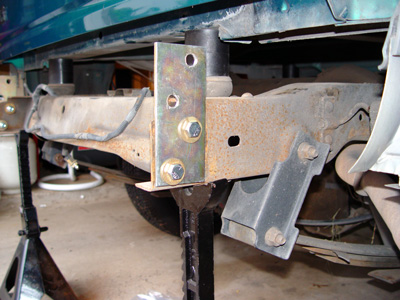

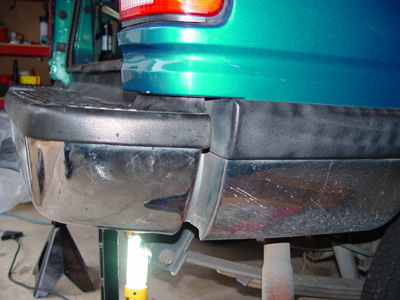

Installing the rear bumper with the 3" brackets

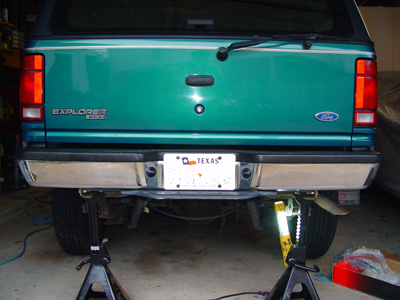

The rear bumper is now mounted and aligned |
|
|
